Description

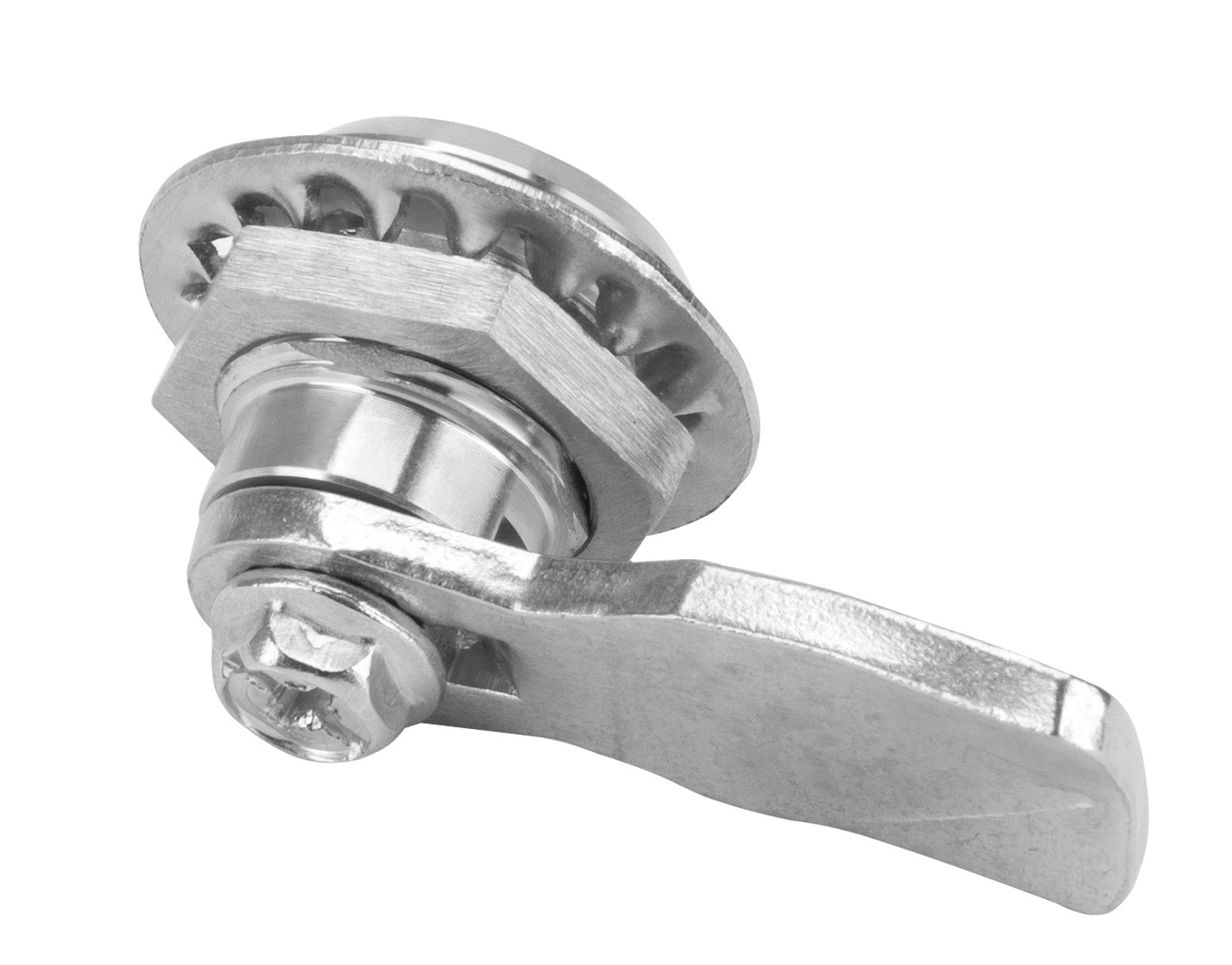

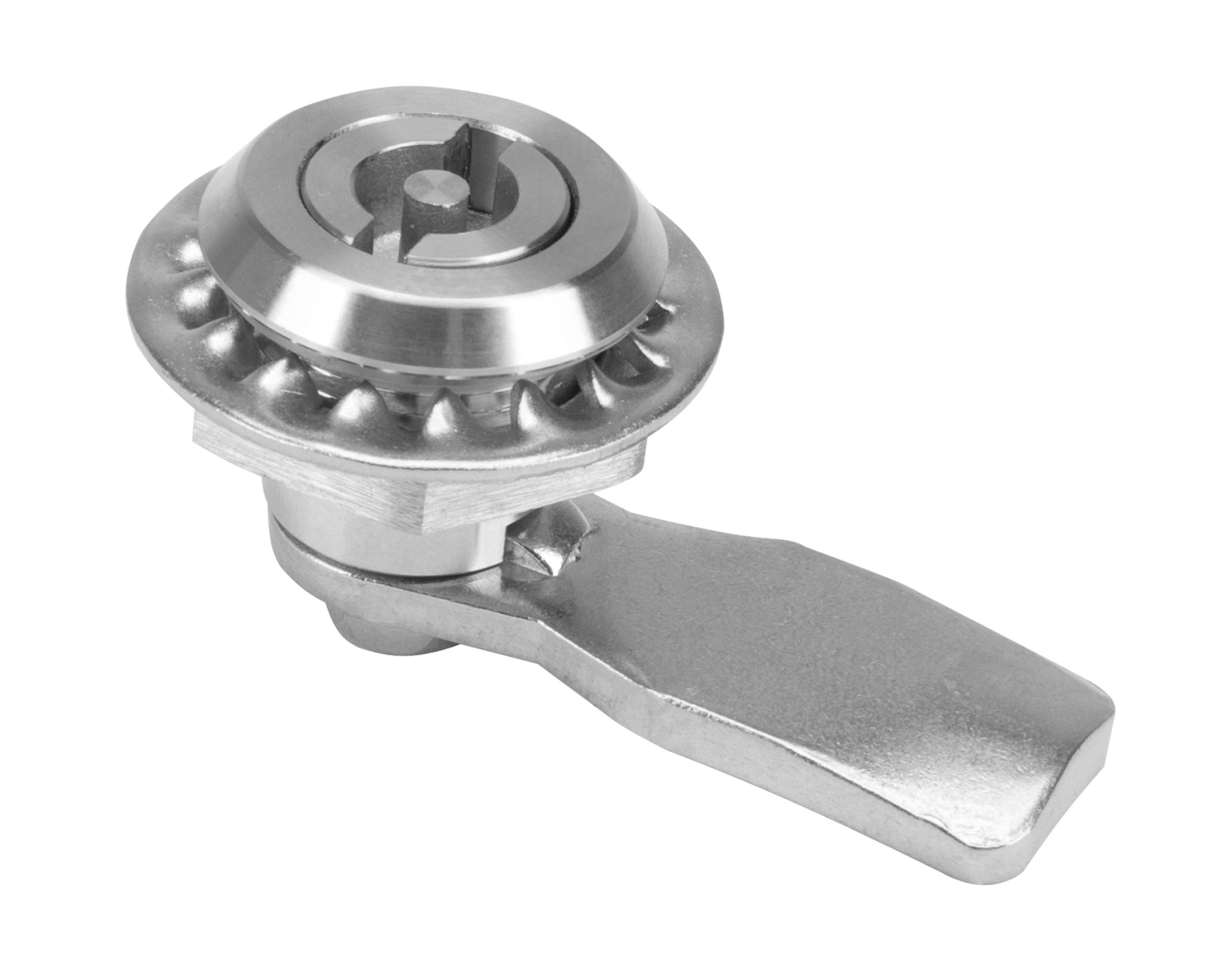

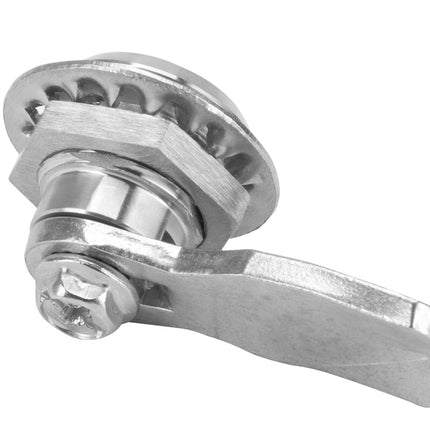

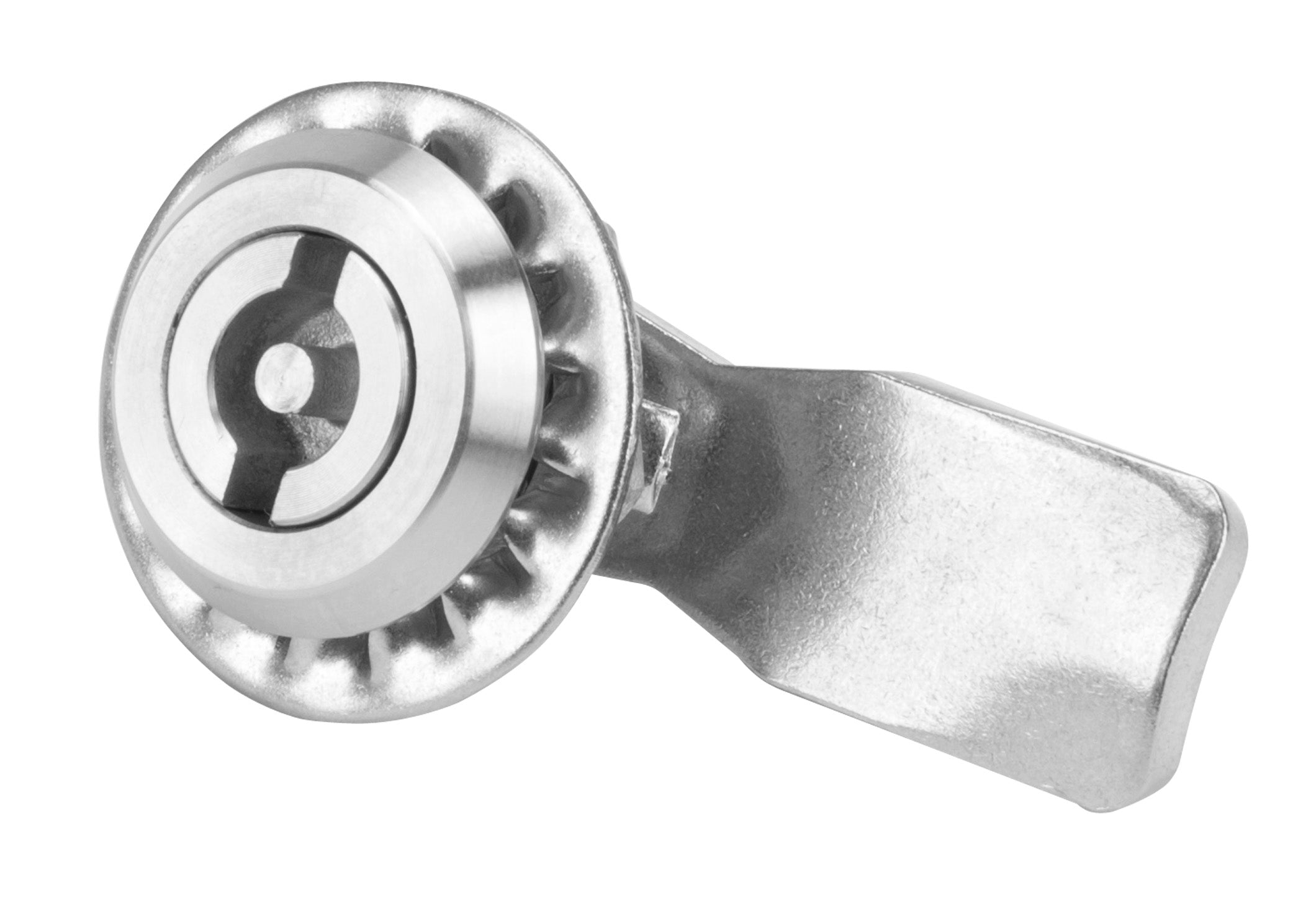

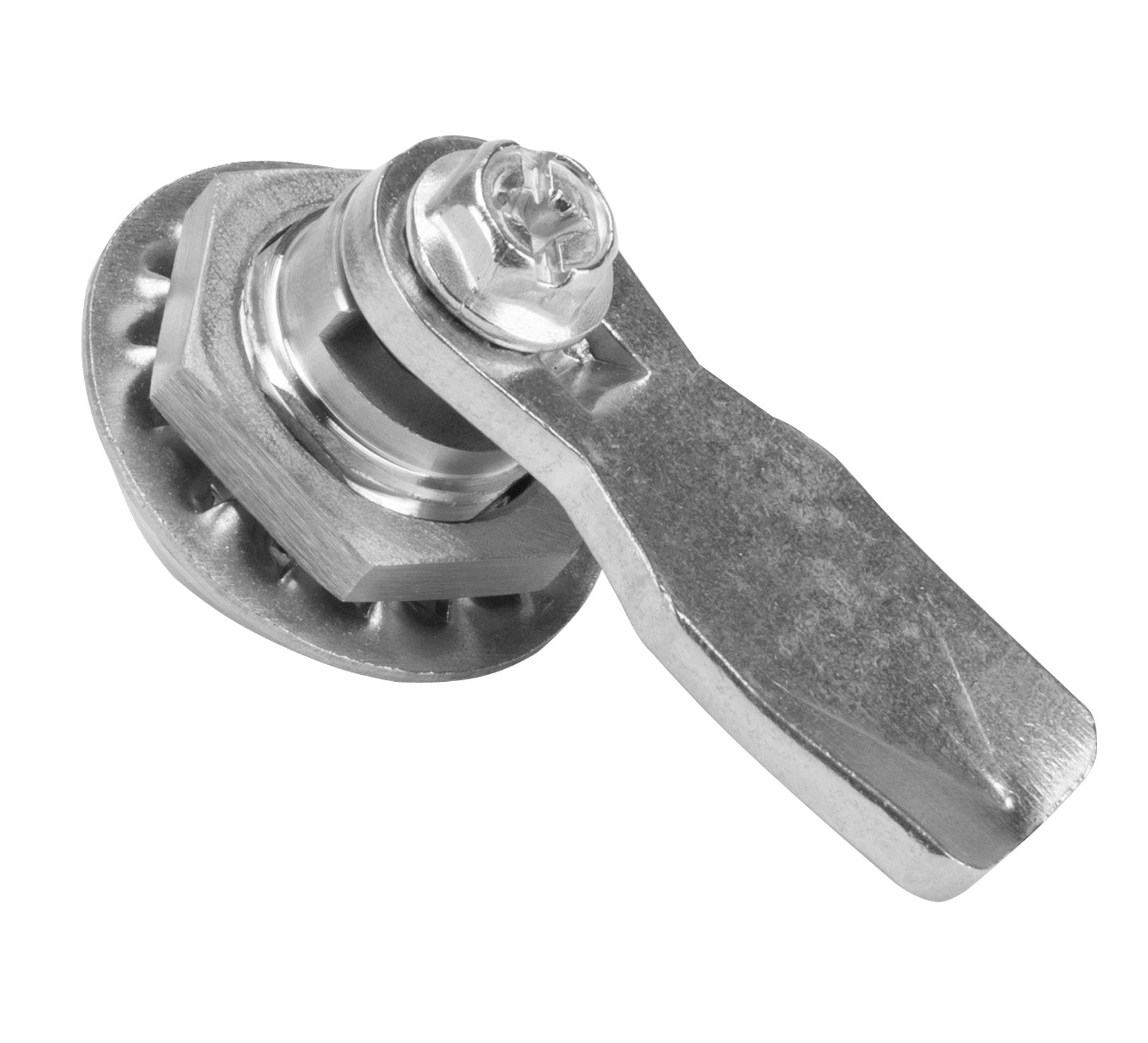

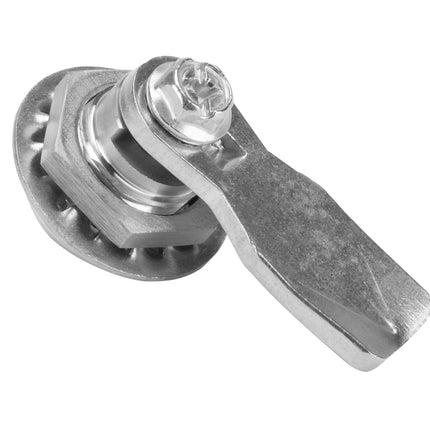

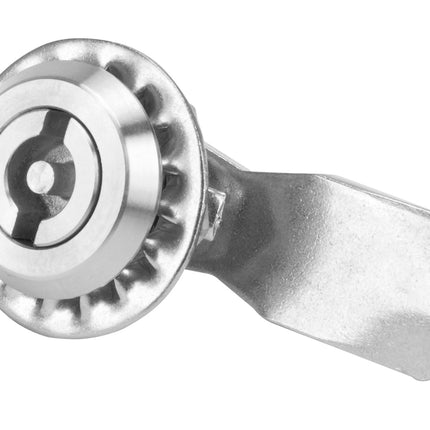

Double-Bit Lock for Stainless Steel Gas and Electric Boxes

Industrial locks are applicable in products such as gas boxes, armored cabinets, metal cabinets, medical cabinets, energy cabinets, telecommunications cabinets, and teleinformatics cabinets. They are also suitable for the railway industry, sailing, and construction equipment.

The lock ensures security against unauthorized access. It is weather-resistant and offers a high protection level of IP 65.

Specifications:

  • Lock Type: Wing
  • Material: Stainless steel AISI304
  • Weather Resistant
  • Rotation Angle: 90°
  • Mounting: Nut fastening
  • Wavy Washer
  • Stainless Steel Bolt

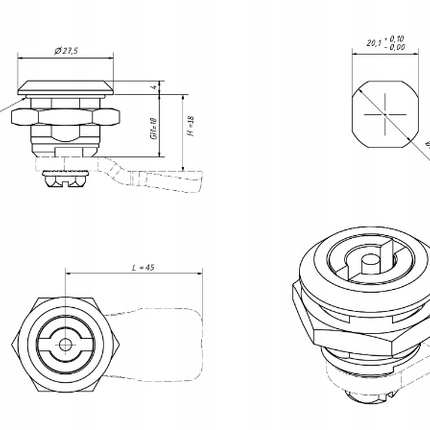

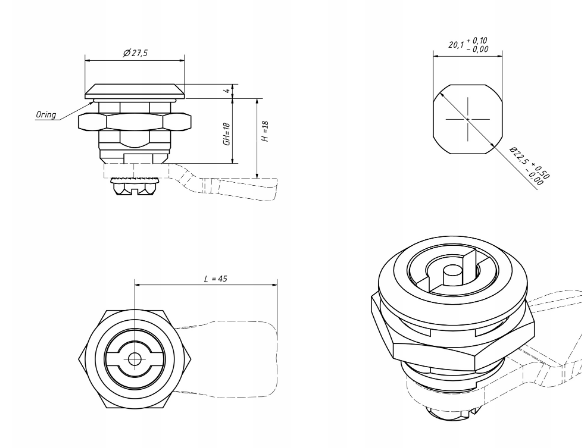

Lock Dimensions:

  • Mounting Hole: 20.1 x 22.5 mm
  • Body Length: 18 mm
  • Lock Diameter: Ø27.5 mm

Bolt Dimensions:

  • Length: 45 mm
  • Thickness: 4 mm

Quarter-Turn Wing Lock for Stainless Steel Gas Cabinets 1ZP-0325

Product form

45,00 zł (netto: 36,59 zł)

Unavailable

    Description

    Double-Bit Lock for Stainless Steel Gas and Electric Boxes

    Industrial locks are applicable in products such as gas boxes, armored cabinets, metal cabinets, medical cabinets, energy cabinets, telecommunications cabinets, and teleinformatics cabinets. They are also suitable for the railway industry, sailing, and construction equipment.

    The lock ensures security against unauthorized access. It is weather-resistant and offers a high protection level of IP 65.

    Specifications:

    • Lock Type: Wing
    • Material: Stainless steel AISI304
    • Weather Resistant
    • Rotation Angle: 90°
    • Mounting: Nut fastening
    • Wavy Washer
    • Stainless Steel Bolt

    Lock Dimensions:

    • Mounting Hole: 20.1 x 22.5 mm
    • Body Length: 18 mm
    • Lock Diameter: Ø27.5 mm

    Bolt Dimensions:

    • Length: 45 mm
    • Thickness: 4 mm
