Description

Description

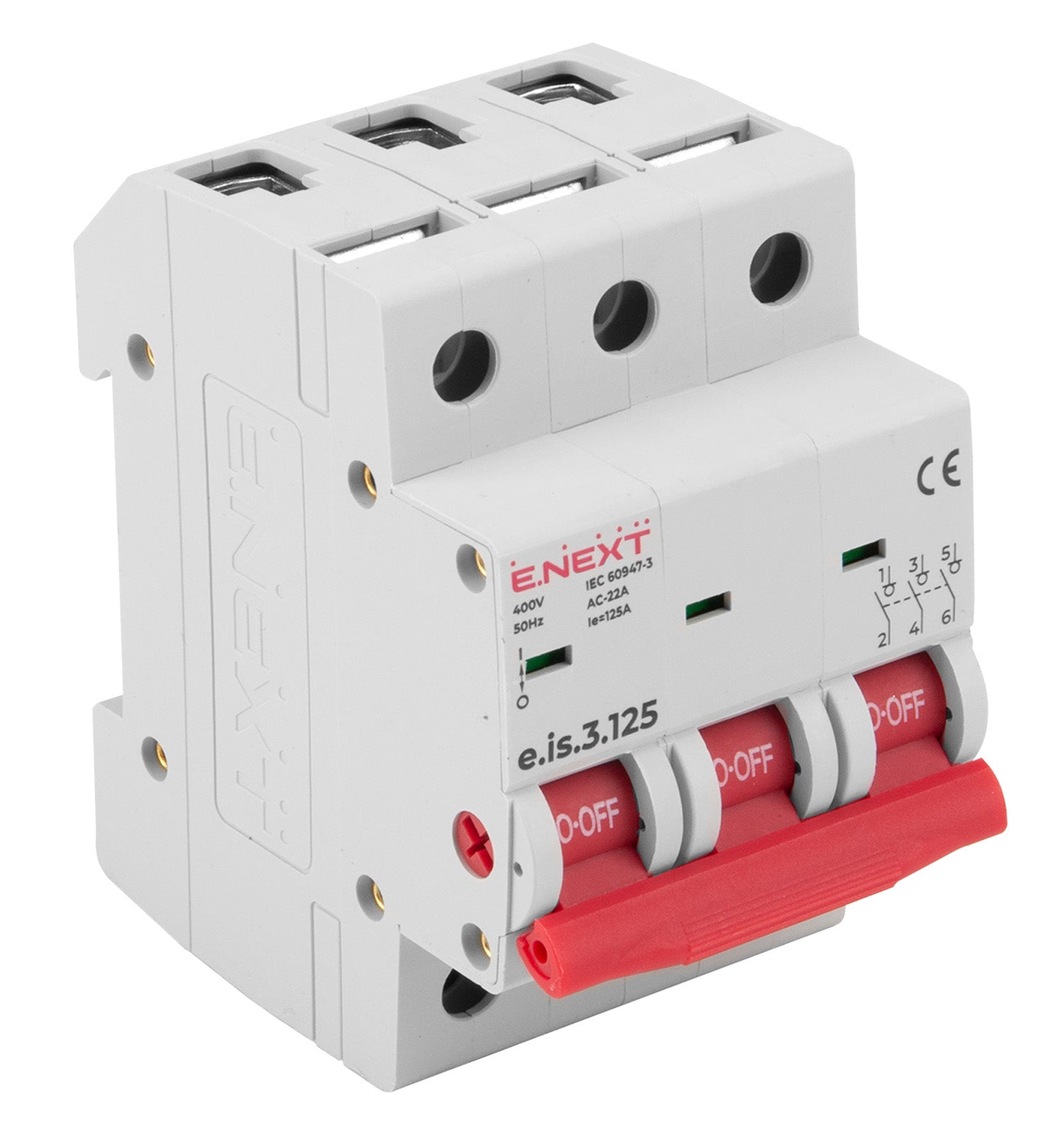

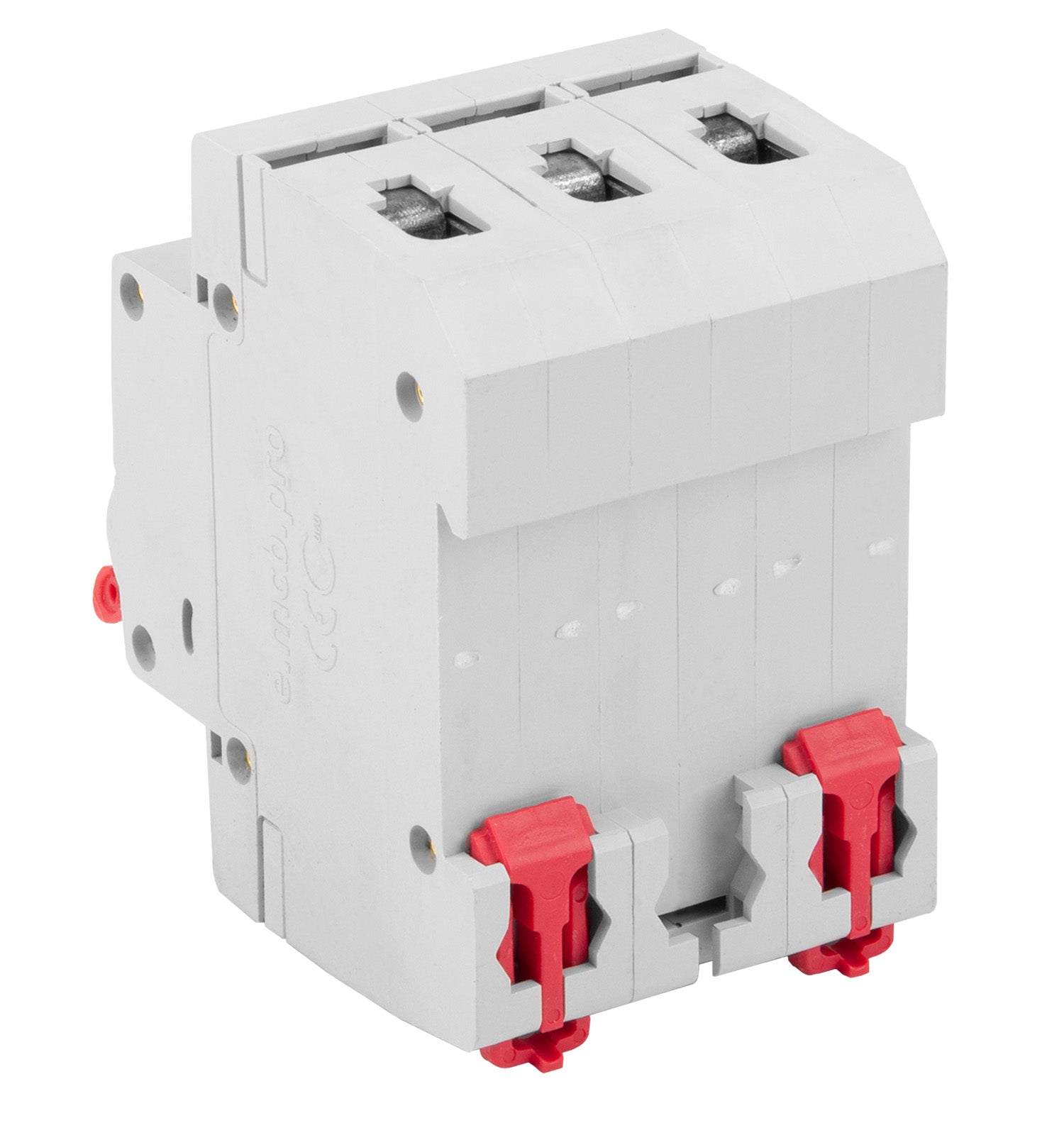

The isolating switch from E.NEXT is used as a main emergency breaker. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions as well as during short circuits or overloads in electrical installations. It ensures safe operation during the handling and servicing of devices and networks.

The switch’s housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact.

Specifications:

  • Protection degree: IP20
  • Max. connected wire cross-section: 1 to 25 mm²
  • Mounting: Standard DIN rail 35 mm
  • DIN rail positions: Two fixed positions
  • Connection method: Top and bottom
  • Operating temperature: -25°C to +40°C
  • Rated voltage: 400V~
  • Rated frequency: 50 Hz
  • Number of poles: 3
  • Mechanical lifespan: Not less than 10,000 cycles
  • Terminal tightening torque: 3 Nm
  • Rated current: 125A
  • CE Certificate

Main Disconnect Switch 3P 125A

Product form

Free pickup in our shop(s)

Barcode: 3800158205596

29,14 zł (netto: 23,69 zł)

Large quantity

      Description

      Description

      The isolating switch from E.NEXT is used as a main emergency breaker. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions as well as during short circuits or overloads in electrical installations. It ensures safe operation during the handling and servicing of devices and networks.

      The switch’s housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact.

      Specifications:

      • Protection degree: IP20
      • Max. connected wire cross-section: 1 to 25 mm²
      • Mounting: Standard DIN rail 35 mm
      • DIN rail positions: Two fixed positions
      • Connection method: Top and bottom
      • Operating temperature: -25°C to +40°C
      • Rated voltage: 400V~
      • Rated frequency: 50 Hz
      • Number of poles: 3
      • Mechanical lifespan: Not less than 10,000 cycles
      • Terminal tightening torque: 3 Nm
      • Rated current: 125A
      • CE Certificate
