Description

Description

The grounding set is ideal for electrical installations, surge protection systems, and any application requiring a reliable and durable grounding installation.

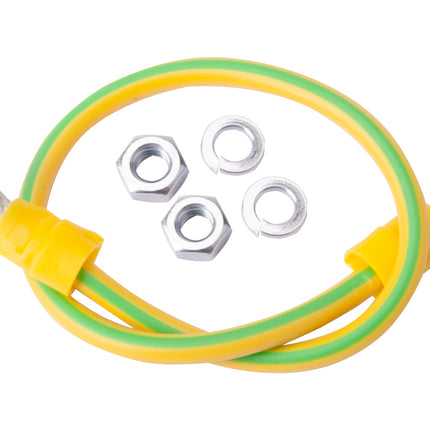

Each component of the set ensures reliability and durability of grounding connections. The set includes: LGY 4.0 750V fi4 conductor, insulated ring terminal KOI 6/6, spring washer M6 DIN127, and M6 nut DIN 934 Zn.

Specifications:

  • Conductor: LGY 4.0 750V fi4
    • Nominal cross-section: 4 mm²
    • Conductor material: Copper
    • Insulation material: PVC (polyvinyl chloride)
    • Rated voltage: 450/750V
    • Allowable temperature for permanently installed cable: -40/+70°C
    • Approximate outer diameter: 4.30mm
    • Length: 2.5m

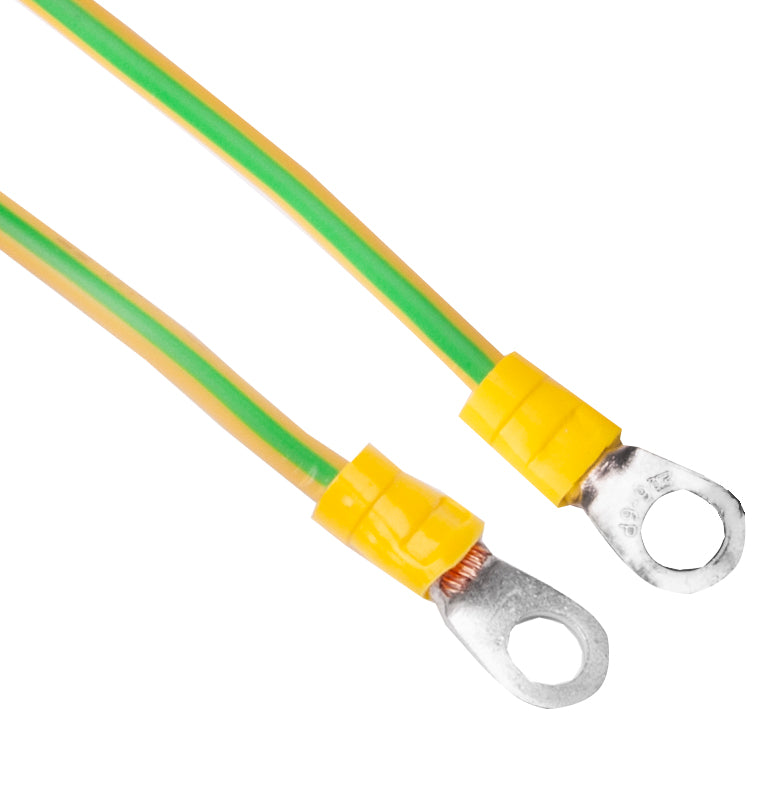

Insulated Ring Terminal KOI 6/6:

  • Ensures connection of the conductor to structural elements
  • Insulation protects against accidental short circuits
  • Nominal cross-section: 4 to 6 mm²
  • Hole for screw: M6

Additional Components:

  • Spring washer M6 DIN127
  • M6 nut DIN 934 Zn

Grounding Set Cable Conductor LGY 4 mm² 2.5m

Product form

Free pickup in our shop(s)

Barcode: 5903968237059

26,00 zł (netto: 21,14 zł)
