Description

Description

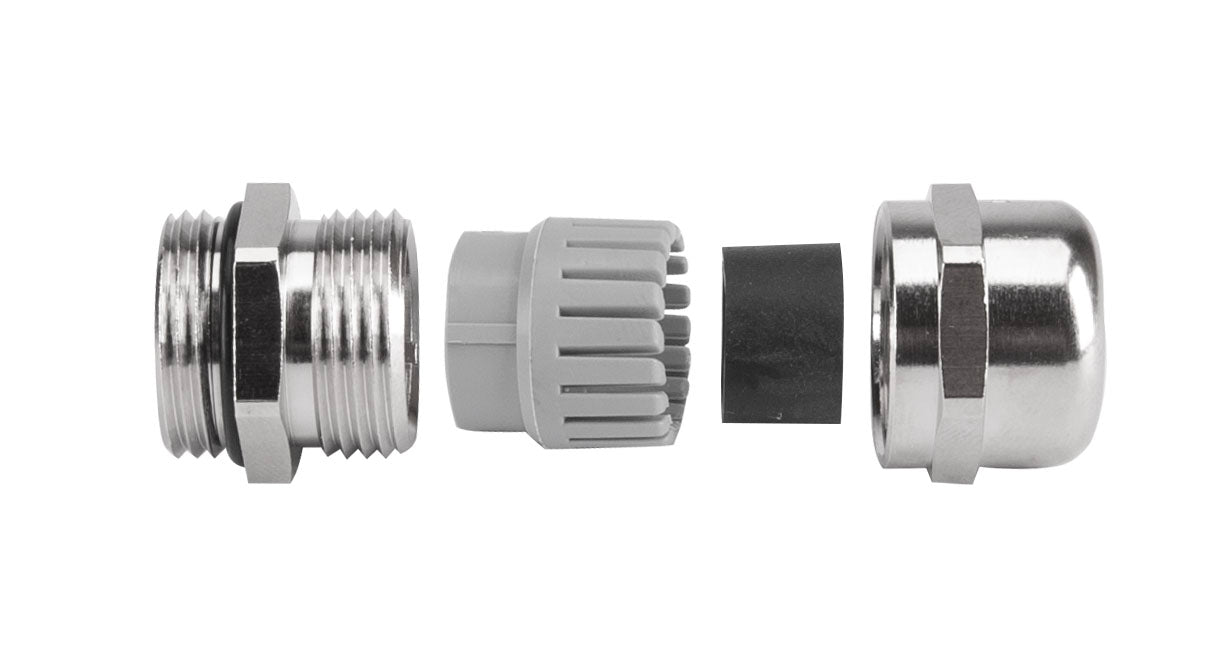

Cable glands secure and seal cables and wires passing through the enclosures of electrical, telecommunication, and data communication devices. They protect against harmful factors such as water or any kind of dirt. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

Specification:

  • Nominal thread size: PG11
  • Brand: SKINTOP
  • Manufacturer code: 52015720
  • Min. clamping diameter: 4 mm
  • Max. clamping diameter: 8 mm
  • Wrench size SW: 20 mm
  • Total length: 32 mm
  • Thread length: 6 mm
  • Protection rating: IP68 - 10 bar
  • Material: Nickel-plated brass
  • Sealing through NBR O-Ring
  • Operating temperature: from -25°C to 100°C

Application range:

  • Areas with special requirements for mechanical and chemical stability
  • Chemical industry
  • Measurement, control, and regulation
  • Machine and industrial equipment construction
  • Industrial installations construction

Brass Cable Gland, MS PG11 IP68 SKINTOP 52015720

Product form

Free pickup in our shop(s)

18,70 zł (netto: 15,20 zł)

Large quantity

      Description

      Description

      Cable glands secure and seal cables and wires passing through the enclosures of electrical, telecommunication, and data communication devices. They protect against harmful factors such as water or any kind of dirt. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

      Specification:

      • Nominal thread size: PG11
      • Brand: SKINTOP
      • Manufacturer code: 52015720
      • Min. clamping diameter: 4 mm
      • Max. clamping diameter: 8 mm
      • Wrench size SW: 20 mm
      • Total length: 32 mm
      • Thread length: 6 mm
      • Protection rating: IP68 - 10 bar
      • Material: Nickel-plated brass
      • Sealing through NBR O-Ring
      • Operating temperature: from -25°C to 100°C

      Application range:

      • Areas with special requirements for mechanical and chemical stability
      • Chemical industry
      • Measurement, control, and regulation
      • Machine and industrial equipment construction
      • Industrial installations construction
