Circuit breakers

The residual current circuit breaker from E.NEXT is an essential component of an electrical installation designed to protect people and property. It ensures fire protection, monitors insulation integrity, and disconnects the power supply in case of current leaks. The circuit breaker's housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact. Specifications: Protection degree: IP20 Nominal operating voltage: 230/400V~ Nominal frequency: 50 Hz Nominal current: 40A Nominal differential operating current: 30mA Type: Electromechanical Nominal conditional short-circuit differential current: 6000A Nominal differential tripping and encompassing capacity: 1000A Insulation voltage: 500V Nominal impulse withstand voltage: 6kV Dielectric test voltage (1 minute): 2.5kV Max mass per pole: 190g Connected wire cross-section: 1 to 25 mm² Mounting: Standard DIN rail 35 mm Connection method: Top and bottom Operating temperature: -25°C to +40°C Number of poles: 2 Permissible operating humidity: 80% Terminal tightening torque: 3 Nm CE Certificate

Read more less

The residual current circuit breaker from E.NEXT is an essential component of an electrical installation designed to protect people and property. It ensures fire protection, monitors insulation integrity, and disconnects the power supply in case of current leaks. The circuit breaker's housing and all non-metallic internal parts are made of flame-resistant ABS material. Reinforced contact terminals have grooves that enhance mechanical stability and ensure reliable contact. Specifications: Protection degree: IP20 Nominal operating voltage: 400V~ Nominal frequency: 50 Hz Nominal current: 63A Nominal differential operating current: 30mA Type: Electromechanical Nominal conditional short-circuit differential current: 6000A Nominal differential tripping and encompassing capacity: 1000A Insulation voltage: 630V Nominal impulse withstand voltage: 6kV Dielectric test voltage (1 minute): 2.5kV Max mass per pole: 320g Connected wire cross-section: 1 to 25 mm² Mounting: Standard DIN rail 35 mm Connection method: Top and bottom Operating temperature: -5°C to +40°C Number of poles: 4 Permissible operating humidity: 80% Pollution degree: 2 Terminal tightening torque: 3 Nm CE Certificate

Read more less

The E.NEXT overcurrent circuit breaker, commonly referred to as an "eska," is a component of electrical installations designed to interrupt the continuity of the circuit when the current flowing through it exceeds a safe level for that circuit. Using a fuse allows control and protection of receiver circuits in the installation as well as household electrical devices against the effects of overloads or short circuits. The circuit breaker’s housing and all non-metallic parts inside are made of non-flammable ABS material. Reinforced contact terminals have grooves that improve mechanical stability and ensure reliable contact. Specifications: Protection rating: IP20 Max. cross-section of connected wires: from 1 to 25 mm² Mounting on standard DIN rail TH35 mm Rail connection method: top and bottom Operating temperature: from -25°C to 60°C Rated operating voltage: AC 230 / 400V Rated frequency: 50 Hz Number of poles: 3 Terminal tightening torque: 3 Nm Time-current characteristic: B Rated current: 25A Breaking capacity: 6 kA CE certificate

Read more less

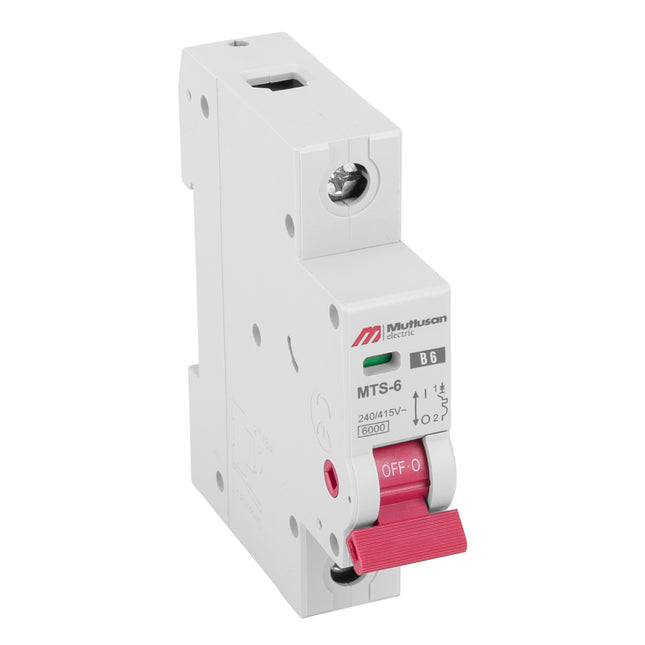

Single-pole (1P) circuit breaker is a basic protective component for electrical installations, designed to prevent damage from short circuits and overloads. Intended for installation in residential, industrial, and commercial distribution panels. Application: Used in modular distribution boards for protecting individual single-phase circuits. Ideal for residential construction, service premises, and light industrial installations. Technical Specifications: Number of poles: 1 Tripping characteristic: B Rated current: 6A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a basic protective component for electrical installations, designed to prevent damage caused by short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards. Application: Most commonly used in home installations, service premises, and small offices. Protects wiring and devices from the effects of electrical faults. Technical Specifications: Number of poles: 1 Tripping characteristic: B Rated current: 10A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a basic protective device for electrical installations, designed to safeguard against short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards. Application: Designed for protecting circuits in small automation systems, control applications, and technical installations. Technical Specifications: Number of poles: 1 Tripping characteristic: C Rated current: 10A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a basic protective element for electrical installations, designed to prevent damage caused by short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards. Application: Widely used for protecting socket outlets, lighting groups, and small electrical devices. Suitable for use in apartments, offices, workshops, and service premises. Technical Specifications: Number of poles: 1 Tripping characteristic: B Rated current: 16A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a fundamental protection element for electrical installations, designed to prevent damage caused by short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards. Application: Recommended for protecting circuits with motors, LED lighting with large power supplies, or installations with relays. Technical Specifications: Number of poles: 1 Tripping characteristic: C Rated current: 16A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a basic protective device for electrical installations, designed to prevent damage from short circuits and overloads. Intended for use in residential, industrial, and commercial distribution panels. Application: Used in residential installations, workshops, and small facilities. It protects circuits with higher power demand while ensuring fast and safe tripping in case of a short circuit. Technical Specifications: Number of poles: 1 Tripping characteristic: B Rated current: 20A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Single-pole (1P) circuit breaker is a fundamental protection device for electrical installations, designed to prevent damage from short circuits and overloads. Intended for installation in residential, industrial, and commercial distribution panels. Application: Used in automation systems, workshops, ventilation units, and technical industrial installations. Technical Specifications: Number of poles: 1 Tripping characteristic: C Rated current: 20A Protection rating: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Einpoliger (1P) Leitungsschutzschalter ist ein grundlegendes Schutzelement für Elektroinstallationen, das vor Kurzschlüssen und Überlastungen schützt. Geeignet für die Montage in Wohn-, Industrie- und Gewerbeverteilungen. Anwendung: Eingesetzt in Wohn-, Industrie- und Dienstleistungsinstallationen, wo der Schutz stärker belasteter einphasiger Stromkreise erforderlich ist. Technische Daten: Anzahl der Pole: 1 Auslösecharakteristik: B Nennstrom: 32A Schutzart: IP20 Max. Leiterquerschnitt: 1 bis 25 mm² Max. Anzugsdrehmoment: 2,5 Nm Montage: auf Standard-DIN-Schiene TH35 mm Betriebstemperatur: -30°C bis 60°C Nennbetriebsspannung: AC 230 / 400V Schaltvermögen: 6 kA Elektrische Lebensdauer: 5000 Schaltspiele Mechanische Lebensdauer: 20000 Schaltspiele CE-zertifiziert

Read more less

Single-pole (1P) circuit breaker is a fundamental component designed to protect electrical installations from the effects of short circuits and overloads. Suitable for installation in residential, industrial, and commercial distribution boards. Application: Widely used in manufacturing plants, workshops, HVAC systems, and technical distribution panels. Technical Specifications: Number of poles: 1 Tripping characteristic: C Rated current: 32A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

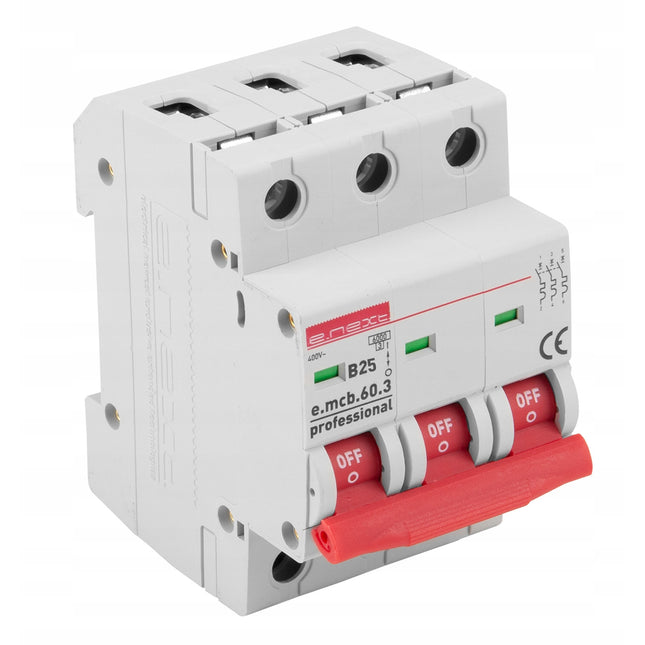

Three-pole (3P) circuit breaker is a robust protection device for electrical installations in three-phase systems. It protects against overloads and short circuits, ensuring safety in industrial, commercial, and residential installations. Application: Widely used in industrial installations, main distribution boards, and subpanels where simultaneous protection of all three phases is required. Technical Specifications: Number of poles: 3 Tripping characteristic: B Rated current: 16A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Three-pole (3P) circuit breaker is a solid protection device for electrical installations in three-phase systems. It safeguards against overloads and short circuits, ensuring safety in industrial, commercial, and residential installations. Application: Particularly recommended for industrial, workshop, and technical installations where equipment generates temporary current surges. Technical Specifications: Number of poles: 3 Tripping characteristic: C Rated current: 16A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Three-pole (3P) circuit breaker is a solid protection device for electrical installations in three-phase systems. It protects against overloads and short circuits, ensuring safety in industrial, commercial, and residential installations. Application: Ideal for three-phase circuits powering furnaces, heaters, auxiliary distribution boards, or heating systems. Technical Specifications: Number of poles: 3 Tripping characteristic: B Rated current: 32A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Three-pole (3P) circuit breaker is a reliable protection device for electrical installations in three-phase systems. It protects against overloads and short circuits, ensuring safety in industrial, commercial, and residential installations. Application: Recommended for protecting power supply systems for industrial equipment and technical systems in commercial buildings. Technical Specifications: Number of poles: 3 Tripping characteristic: C Rated current: 32A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less

Three-pole (3P) circuit breaker is a robust protection device for electrical installations in three-phase systems. It protects against the effects of overloads and short circuits, ensuring safety in industrial, commercial, and residential applications. Application: Designed for industrial, workshop, and commercial use – particularly in systems supplying machinery, large distribution panels, or production lines. Technical Specifications: Number of poles: 3 Tripping characteristic: B Rated current: 63A Protection class: IP20 Max. conductor cross-section: 1 to 25 mm² Max. tightening torque: 2.5 Nm Mounting: standard DIN rail TH35 mm Operating temperature: -30°C to 60°C Rated operating voltage: AC 230 / 400V Breaking capacity: 6 kA Electrical lifespan: 5000 cycles Mechanical lifespan: 20000 cycles CE certified

Read more less
