The residual current circuit breaker (RCCB) from E.NEXT is an essential component of an electrical installation designed to protect people and property. It ensures fire protection, monitors insulation integrity, and disconnects the power supply when current leaks occur.

The breaker’s housing and all non-metallic parts inside are made of non-flammable ABS plastic. Reinforced contact terminals feature grooves that enhance mechanical stability and ensure reliable contact.

Specifications:

  • Protection degree: IP20
  • Rated operating voltage: 230/400V~
  • Rated frequency: 50 Hz
  • Rated current: 16A
  • Rated residual operating current: 30mA
  • Type: Electromechanical
  • Rated conditional residual short-circuit current: 6000A
  • Rated residual making and breaking capacity: 1000A
  • Insulation voltage: 500V
  • Rated impulse withstand voltage: 6kV
  • Dielectric test voltage at industrial frequency (within 1 min.): 2.5kW
  • Max weight per pole: 190g
  • Cross-section of connected wires: from 1 to 25 mm²
  • Mounting on standard DIN rail 35 mm
  • Rail connection method: upper and lower
  • Operating temperature: from -25°C to +40°C
  • Number of poles: 2
  • Permissible operating humidity: 80%
  • Terminal tightening torque: 3Nm
  • CE Certificate

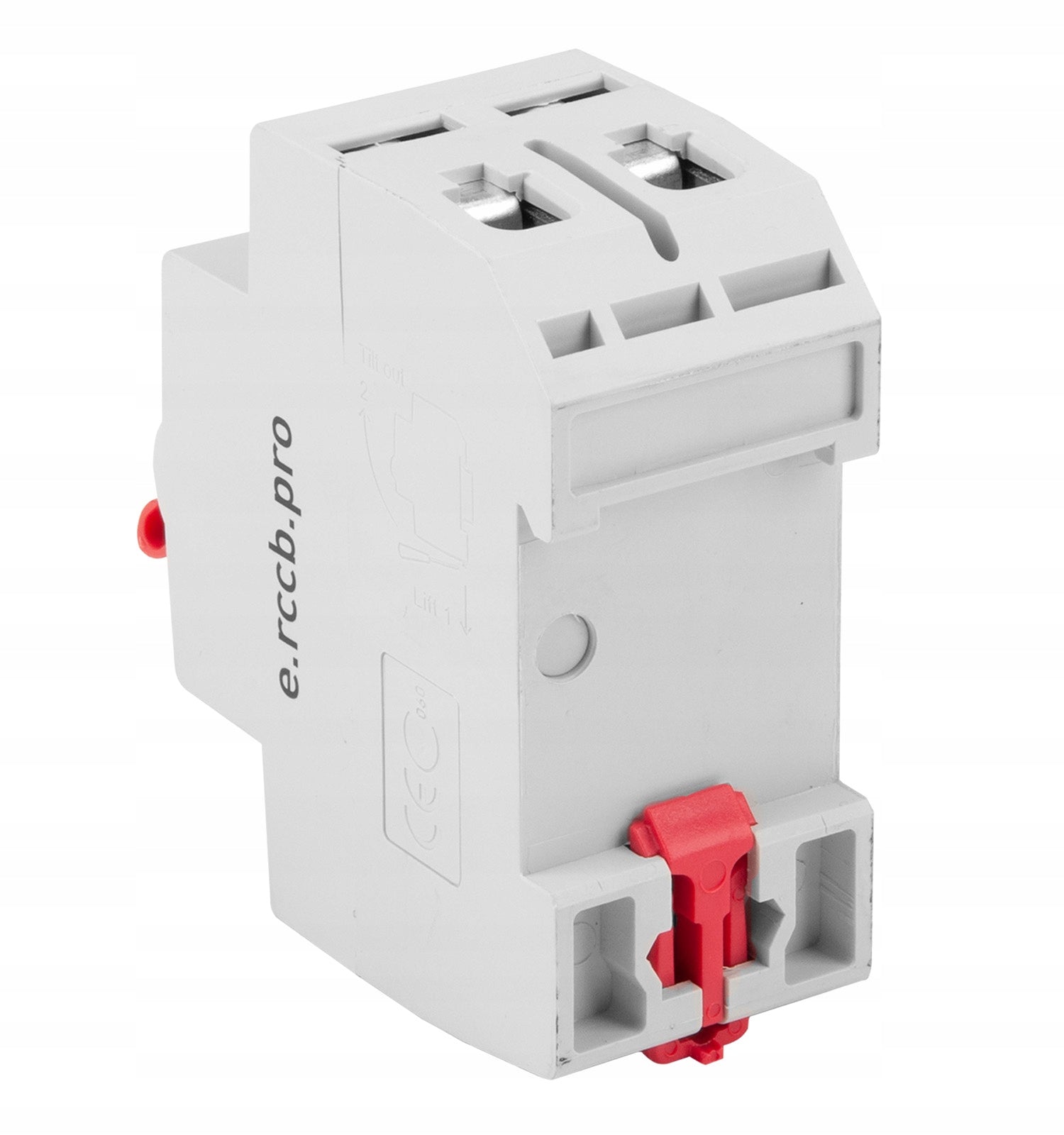

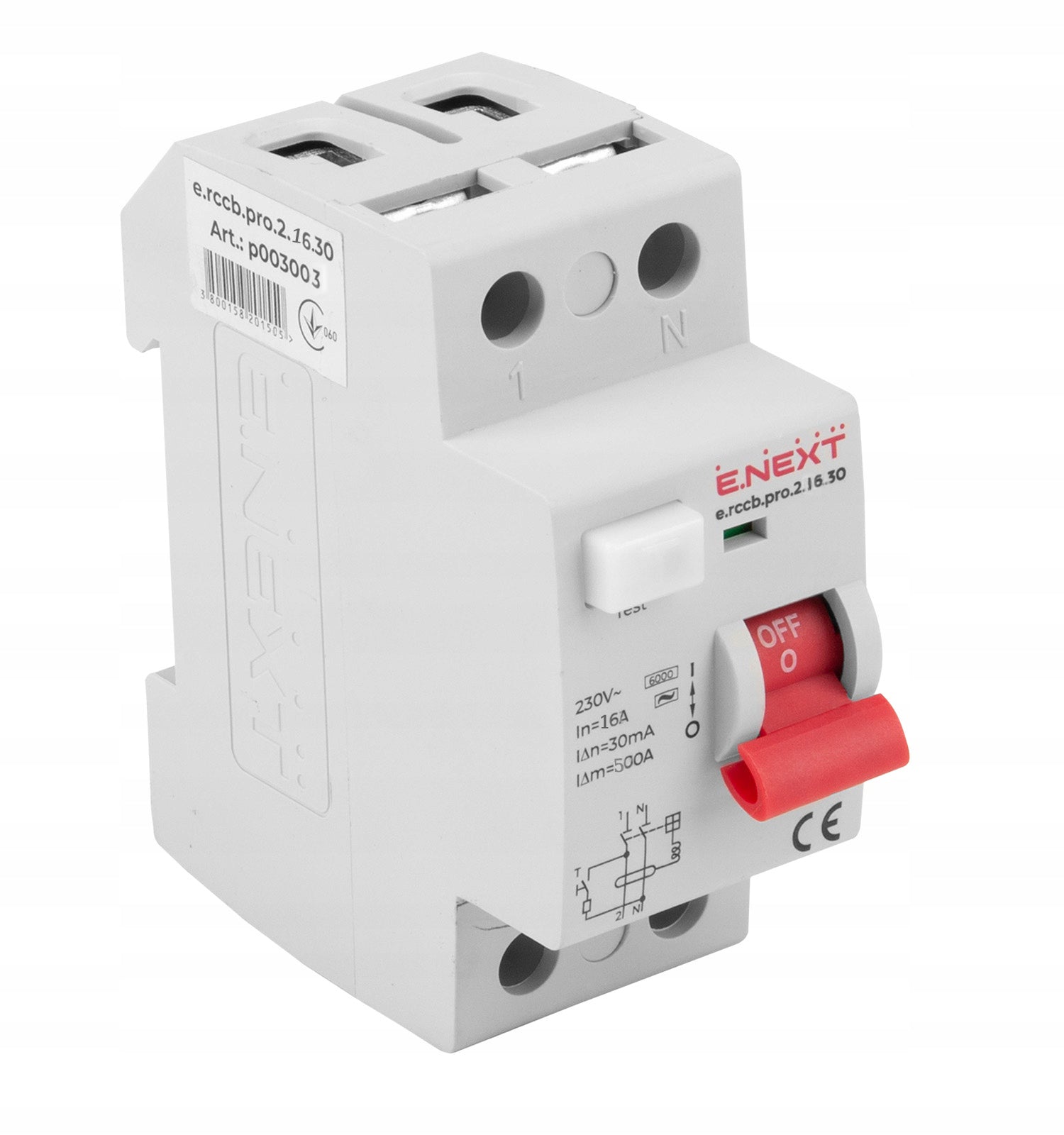

Residual Current Circuit Breaker (RCCB) 2P 16A 30mA

Product form

Free pickup in our shop(s)

Barcode: 3800158201505

70,00 zł (netto: 56,91 zł)

Medium quantity

      Description

      Description

      The residual current circuit breaker (RCCB) from E.NEXT is an essential component of an electrical installation designed to protect people and property. It ensures fire protection, monitors insulation integrity, and disconnects the power supply when current leaks occur.

      The breaker’s housing and all non-metallic parts inside are made of non-flammable ABS plastic. Reinforced contact terminals feature grooves that enhance mechanical stability and ensure reliable contact.

      Specifications:

      • Protection degree: IP20
      • Rated operating voltage: 230/400V~
      • Rated frequency: 50 Hz
      • Rated current: 16A
      • Rated residual operating current: 30mA
      • Type: Electromechanical
      • Rated conditional residual short-circuit current: 6000A
      • Rated residual making and breaking capacity: 1000A
      • Insulation voltage: 500V
      • Rated impulse withstand voltage: 6kV
      • Dielectric test voltage at industrial frequency (within 1 min.): 2.5kW
      • Max weight per pole: 190g
      • Cross-section of connected wires: from 1 to 25 mm²
      • Mounting on standard DIN rail 35 mm
      • Rail connection method: upper and lower
      • Operating temperature: from -25°C to +40°C
      • Number of poles: 2
      • Permissible operating humidity: 80%
      • Terminal tightening torque: 3Nm
      • CE Certificate
