The overcurrent circuit breaker, commonly known as "eska," from E.NEXT is an essential component of an electrical installation. Its purpose is to interrupt the circuit's continuity when the current flowing through it exceeds a safe value for that circuit.

The use of a fuse allows for controlling and protecting receiving circuits in the installation, as well as electrical devices in households, against the effects of overloads or short circuits.

The breaker's casing and all non-metallic parts inside the breaker are made of non-flammable ABS plastic. The reinforced contact terminals have indentations, improving mechanical stability and ensuring reliable contact.

Specification:

  • Protection degree: IP20
  • Made of non-flammable ABS plastic
  • Cross-section of connected wires: from 1 to 25 mm²
  • Mounting on a standard DIN 35 mm rail
  • Two fixed positions on the DIN rail
  • Rail connection method: upper and lower
  • Operating temperature: from -25°C to 60°C
  • Rated voltage: 230/400V~
  • Rated frequency: 50 Hz
  • Number of poles: 1
  • Contact terminal tightening torque: 3Nm
  • Time-current characteristic: B
  • Rated current: 6A
  • Breaking capacity: 6 kA
  • CE certificate

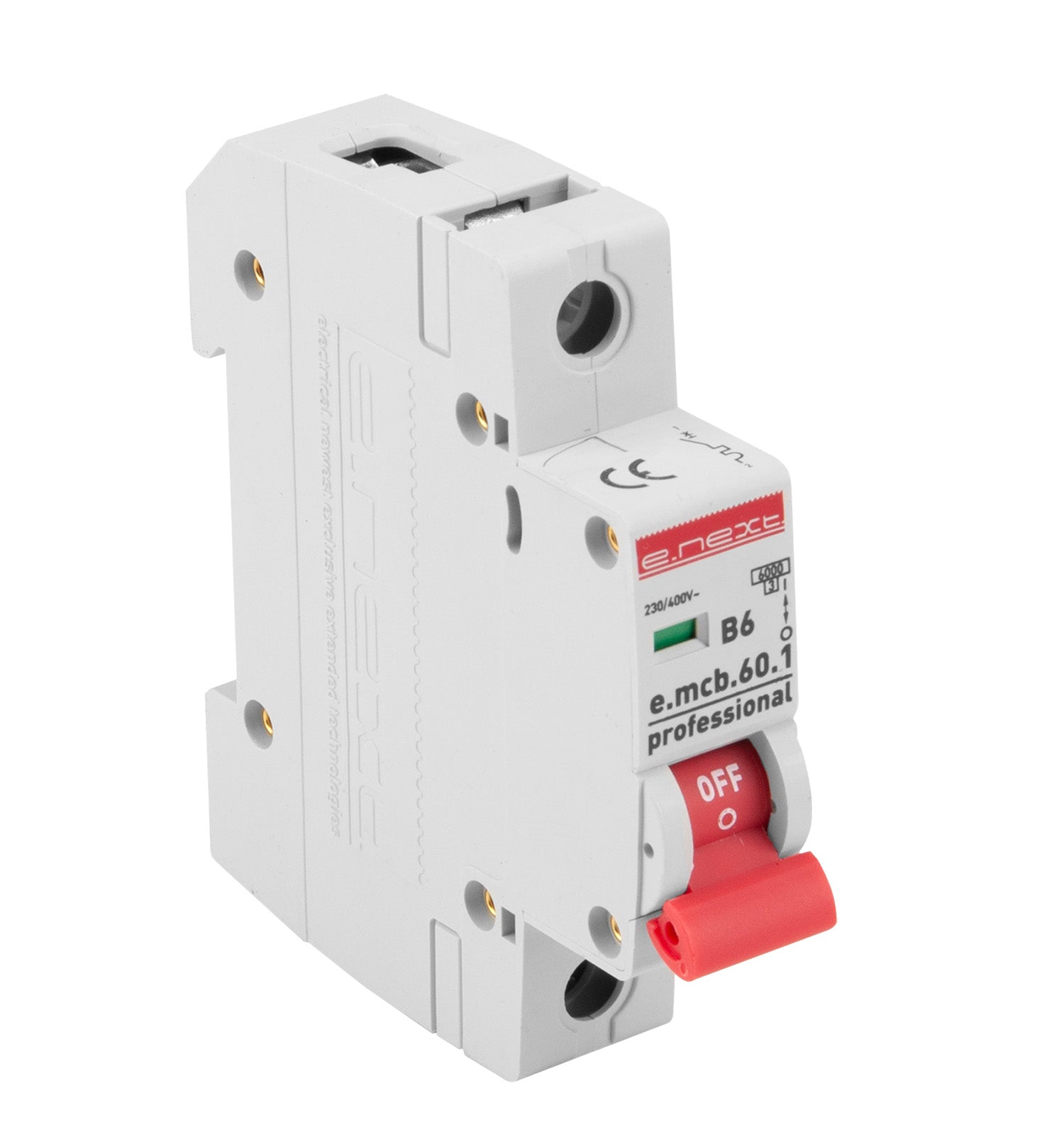

Overcurrent Circuit Breaker Fuse B6 1P 6A

Product form

Free pickup in our shop(s)

Barcode: 3800158204759

9,45 zł (netto: 7,68 zł)
