Description

Description

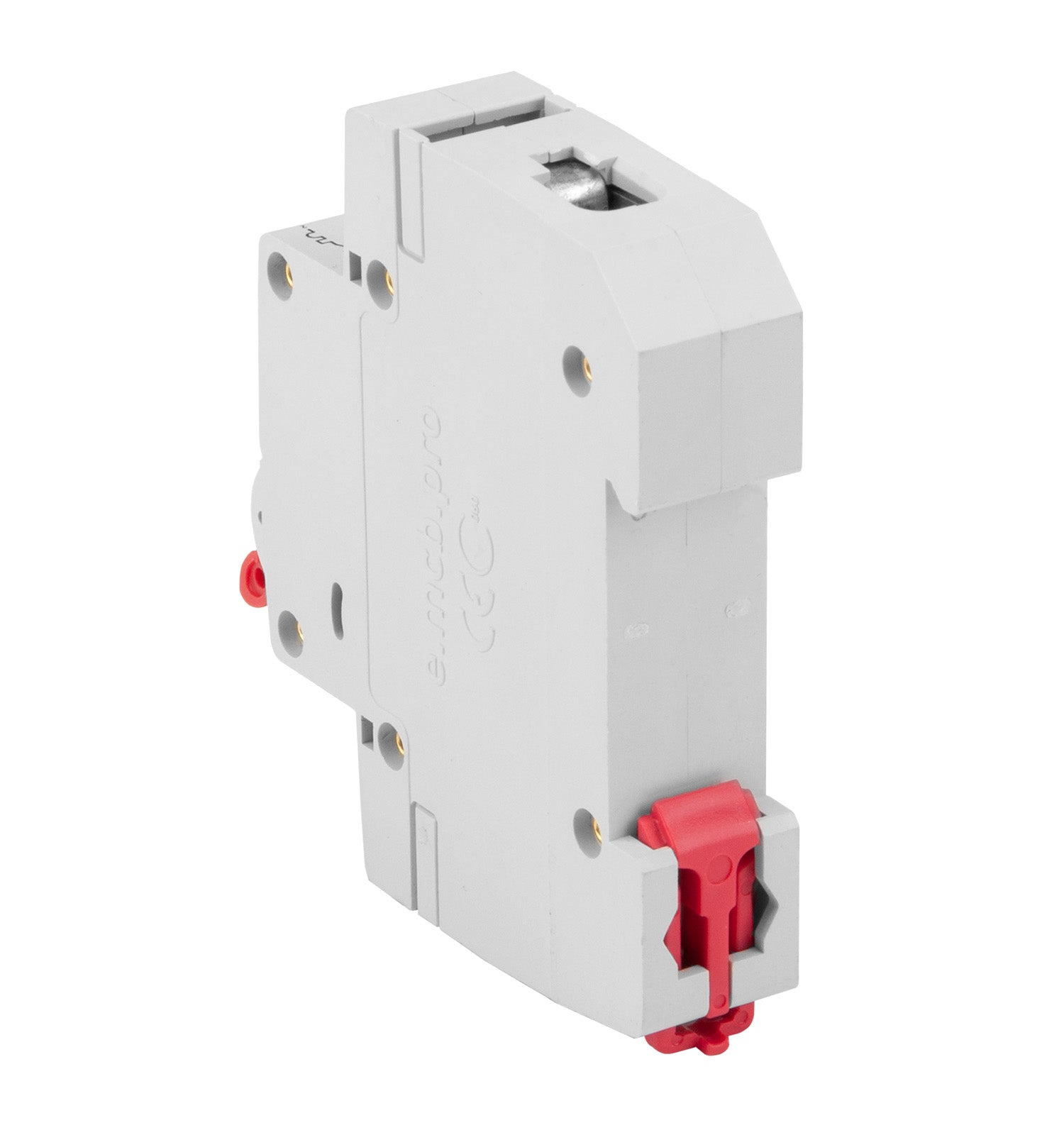

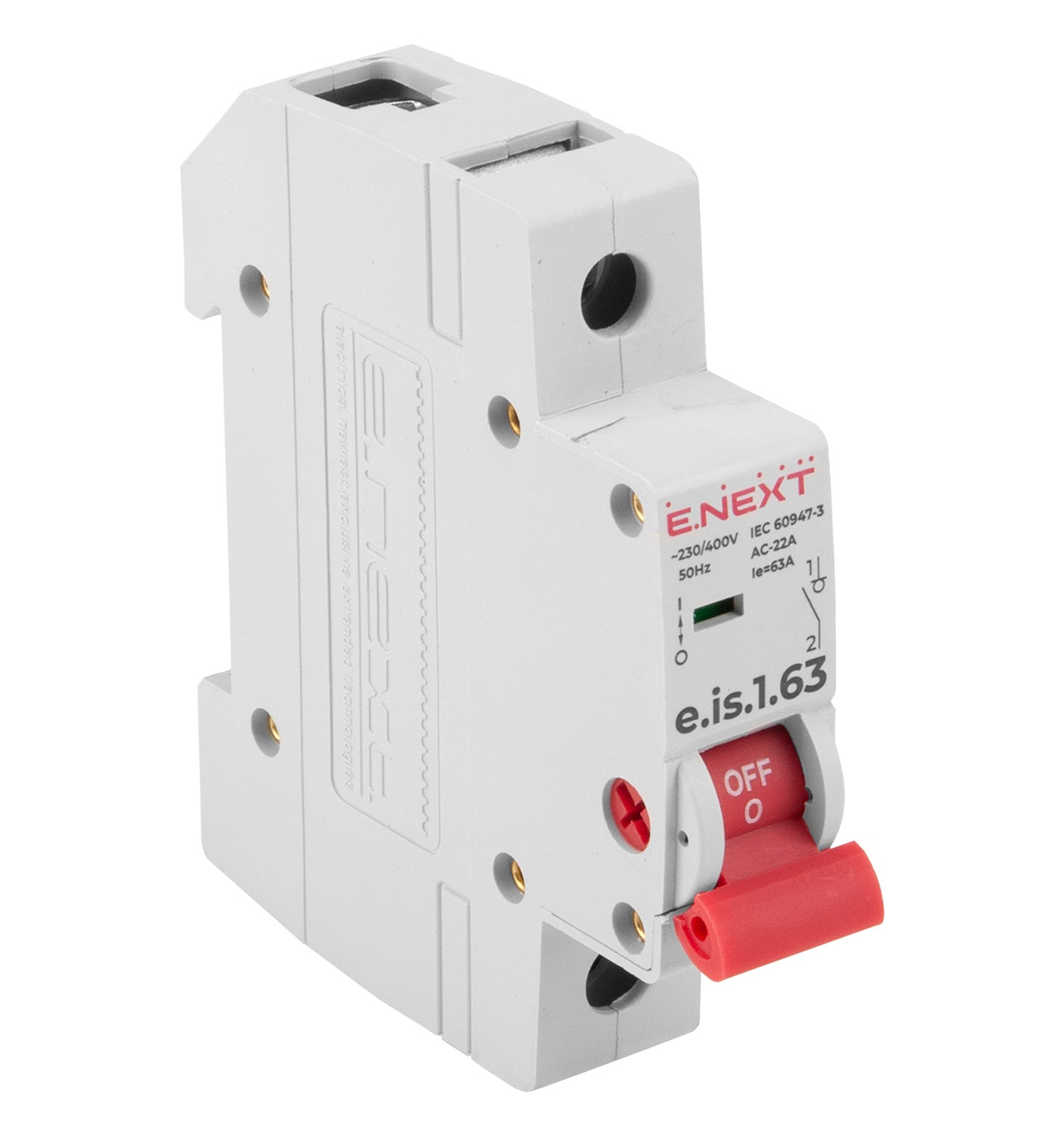

The E.NEXT isolating switch serves as the main emergency switch. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions and also in the event of a short circuit or overload in electrical installations. It ensures safe operation during the handling and servicing of devices and networks.

The switch housing and all non-metallic parts inside the switch are made of non-flammable ABS plastic. Reinforced contact terminals have grooves that improve mechanical stability and ensure reliable contact.

Specifications:

  • Protection level: IP20
  • Made of non-flammable ABS plastic
  • Max. cross-section of connected wires: 1 to 25 mm²
  • Mounting on a standard DIN 35 mm rail
  • Two fixed mounting positions on the DIN rail
  • Connection method: top and bottom
  • Operating temperature: -25°C to +40°C
  • Rated voltage: 230/400V~
  • Rated frequency: 50 Hz
  • Number of poles: 1
  • Mechanical lifespan: not less than 10,000 cycles
  • Terminal tightening torque: 3Nm
  • Rated current: 63A
  • CE Certificate

Main Disconnect Switch 1P 63A

Product form

Free pickup in our shop(s)

Barcode: 3800158206548

11,50 zł (netto: 9,35 zł)

Low stock

      Description

      Description

      The E.NEXT isolating switch serves as the main emergency switch. It protects against the effects of short circuits and overloads. The switch conducts current under nominal conditions and also in the event of a short circuit or overload in electrical installations. It ensures safe operation during the handling and servicing of devices and networks.

      The switch housing and all non-metallic parts inside the switch are made of non-flammable ABS plastic. Reinforced contact terminals have grooves that improve mechanical stability and ensure reliable contact.

      Specifications:

      • Protection level: IP20
      • Made of non-flammable ABS plastic
      • Max. cross-section of connected wires: 1 to 25 mm²
      • Mounting on a standard DIN 35 mm rail
      • Two fixed mounting positions on the DIN rail
      • Connection method: top and bottom
      • Operating temperature: -25°C to +40°C
      • Rated voltage: 230/400V~
      • Rated frequency: 50 Hz
      • Number of poles: 1
      • Mechanical lifespan: not less than 10,000 cycles
      • Terminal tightening torque: 3Nm
      • Rated current: 63A
      • CE Certificate
