Description

Description

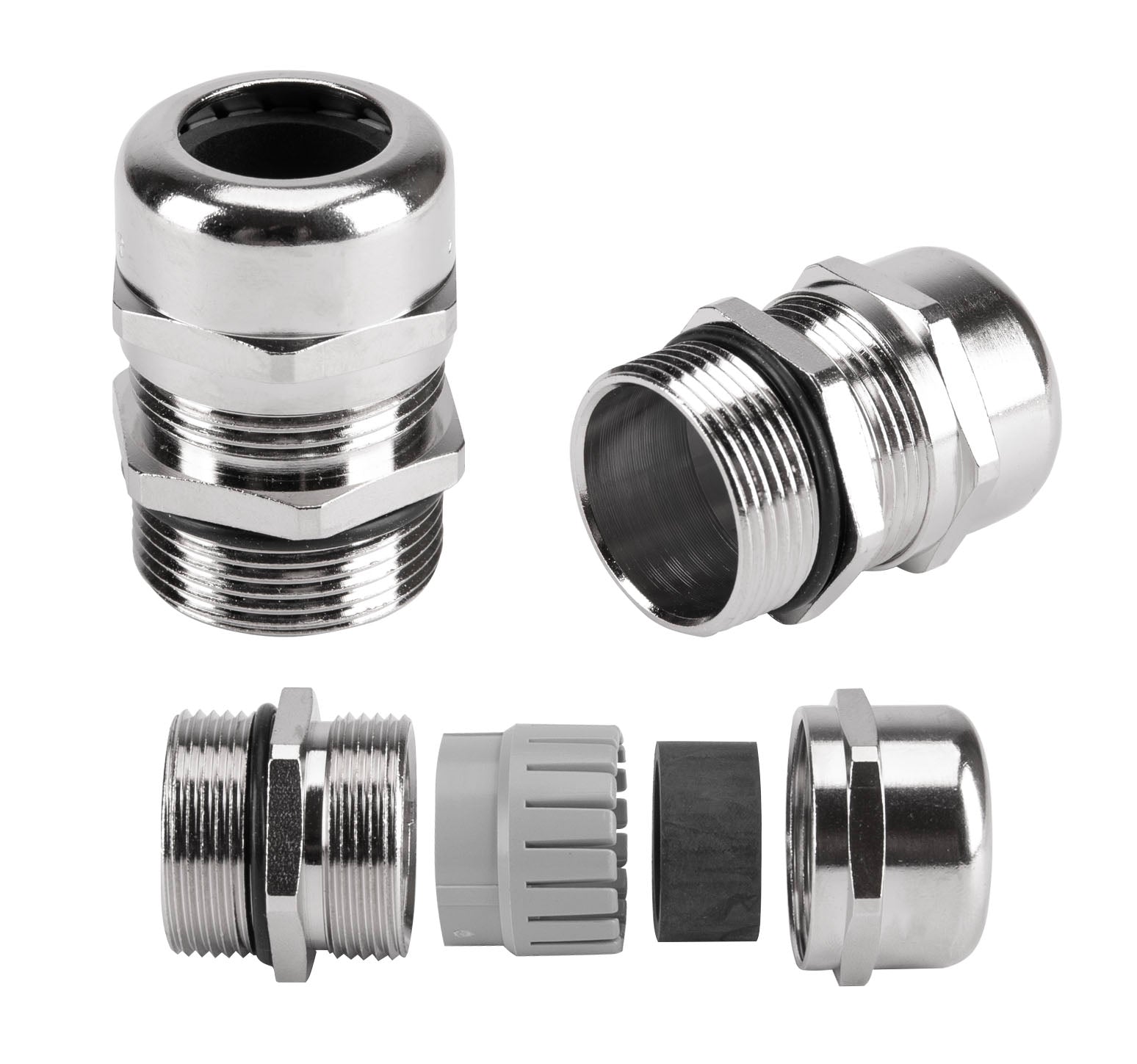

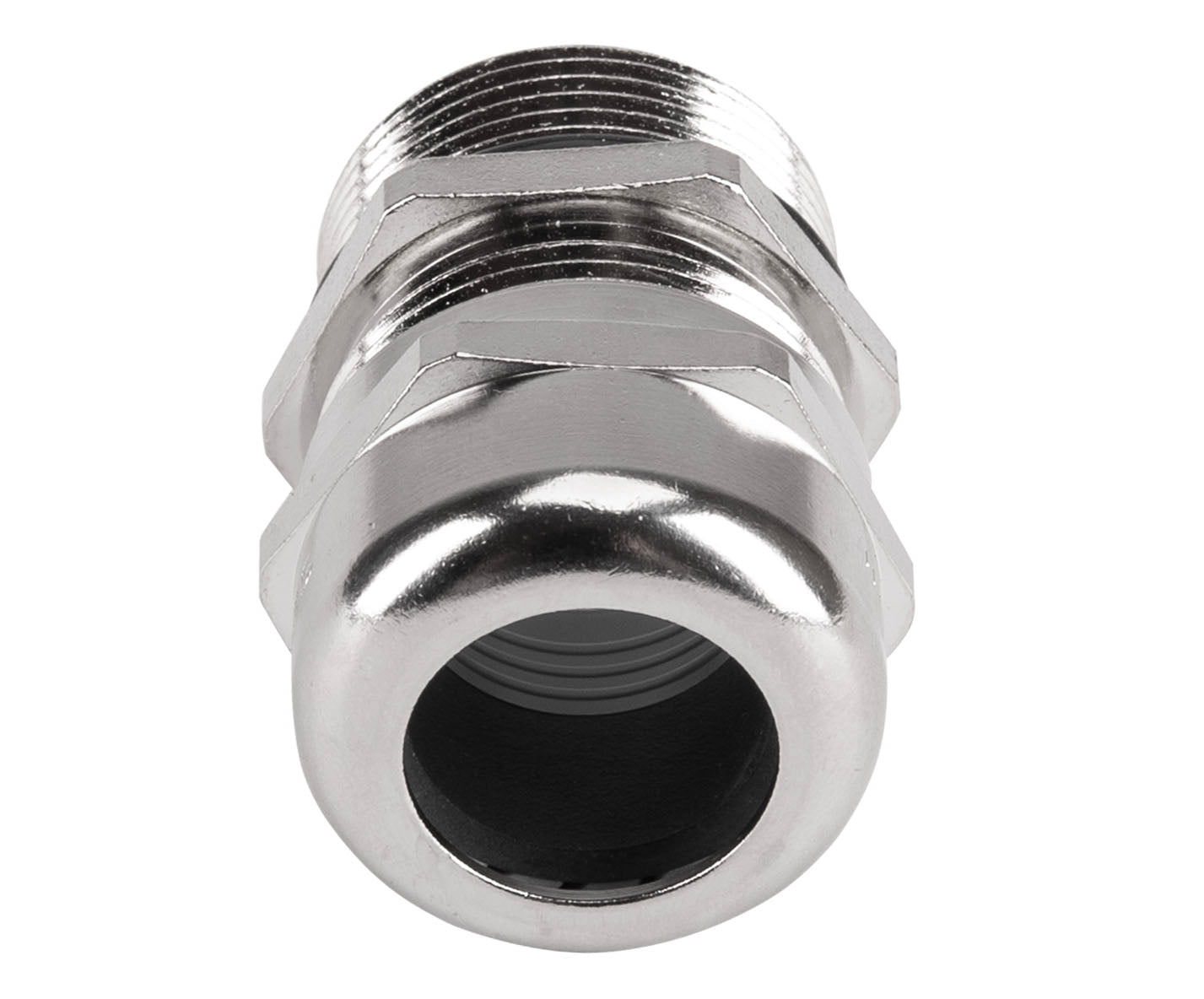

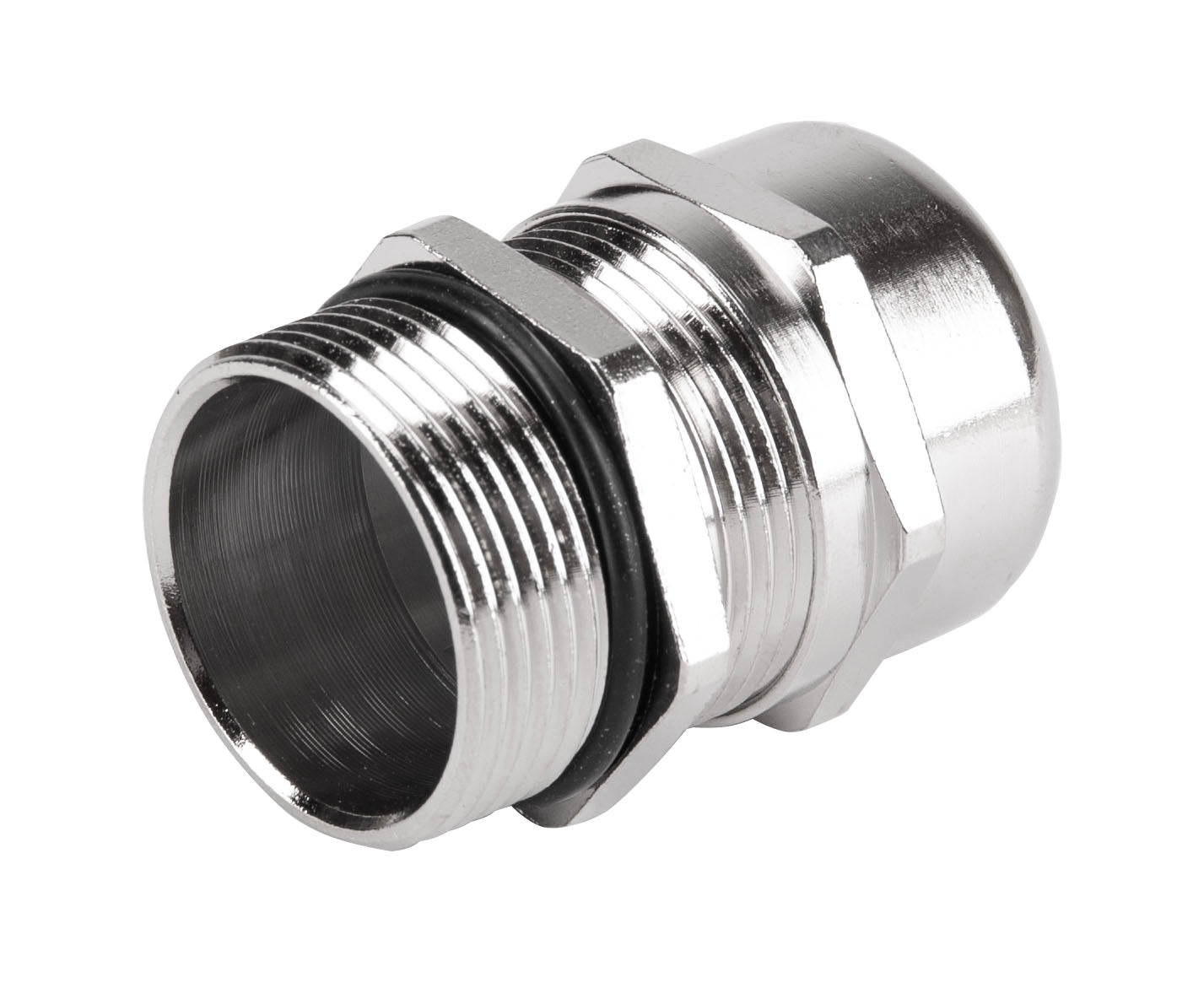

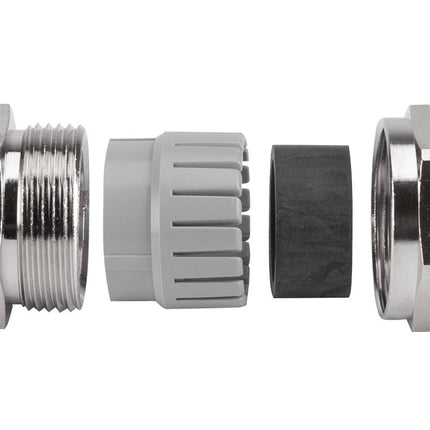

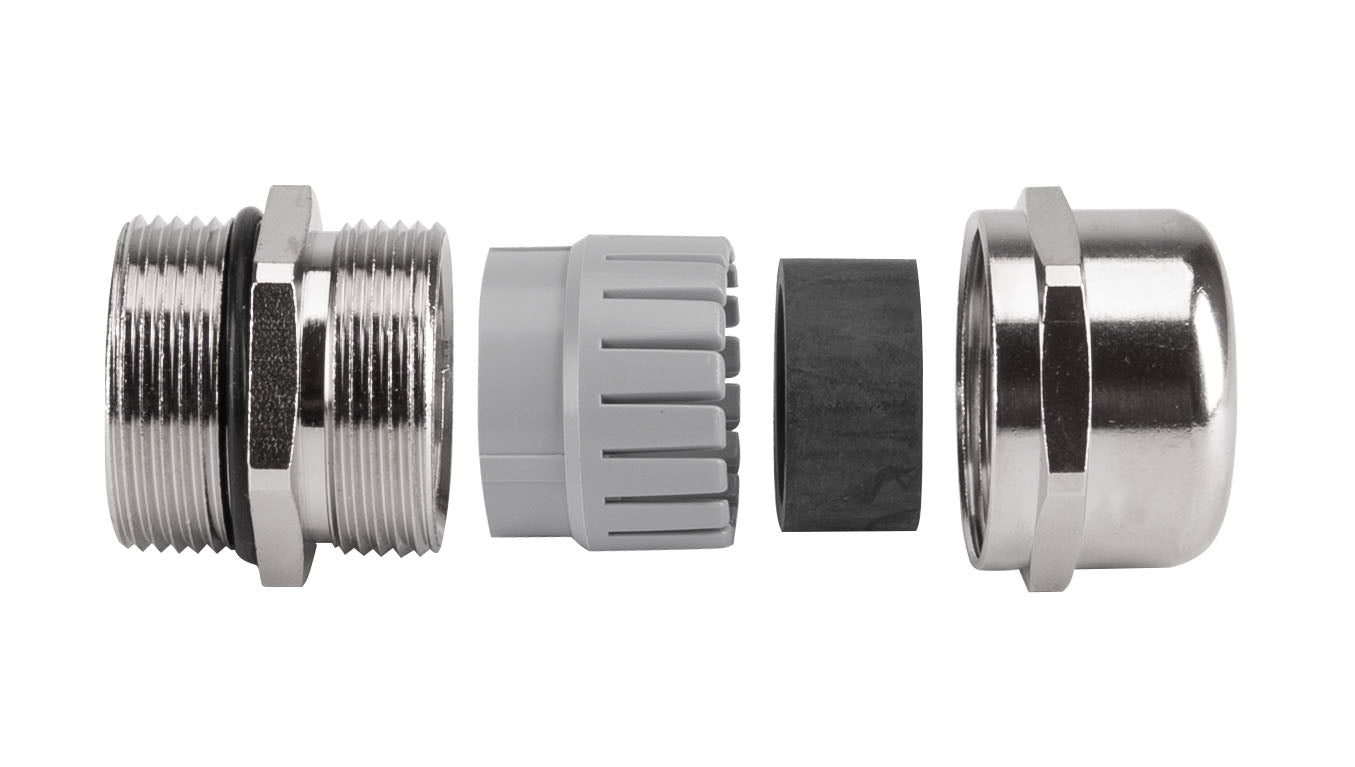

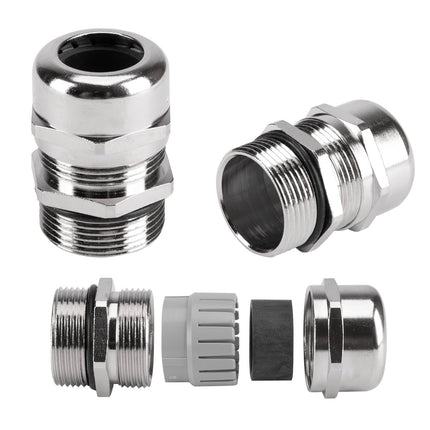

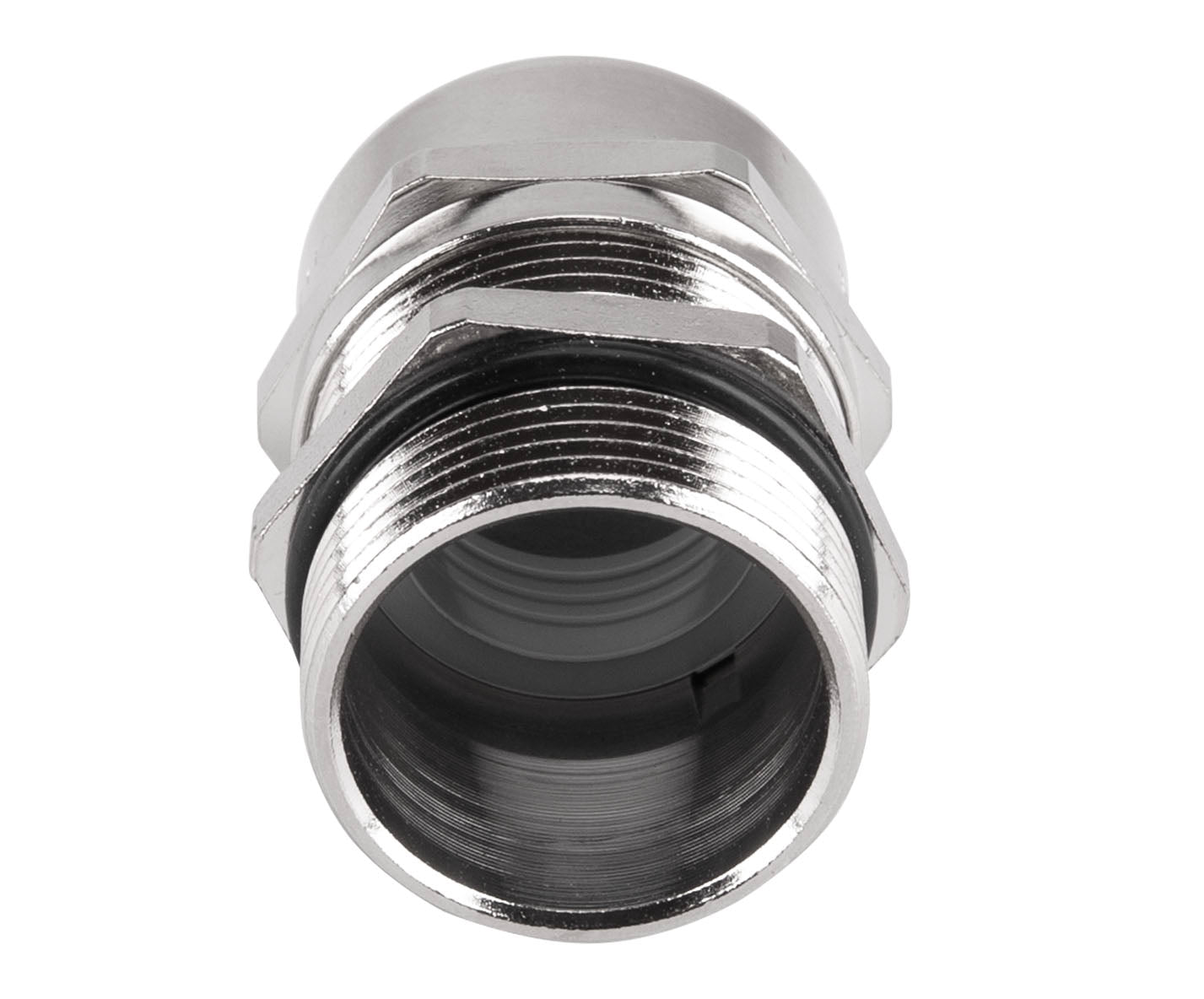

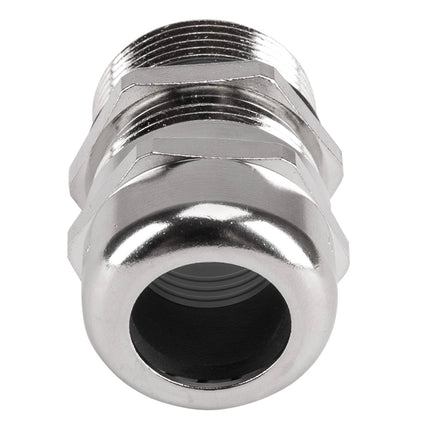

Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

Specification:

  • Nominal thread size: PG29
  • Brand: SKINTOP
  • Manufacturer code: 52115760
  • Min. clamping diameter: 16 mm
  • Max. clamping diameter: 25 mm
  • Wrench size SW: 40 mm
  • Total length: 52 mm
  • Thread length: 15 mm
  • Protection rating: IP68 - 10 bar
  • Material: Nickel-plated brass
  • Sealing through NBR O-Ring
  • Operating temperature: from -25°C to 100°C

Application range:

  • With a longer connection thread for use in thicker walls
  • In areas with special requirements for mechanical and chemical stability
  • Chemical industry
  • Measurement, control, and regulation
  • Machine and industrial equipment construction
  • Industrial installations construction

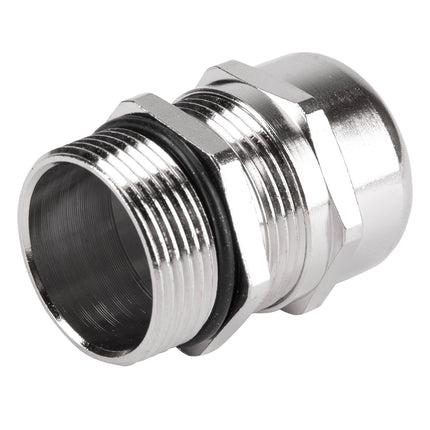

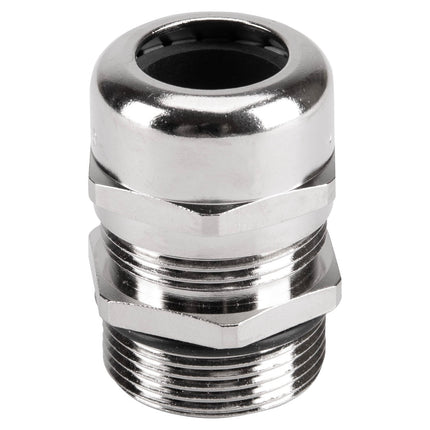

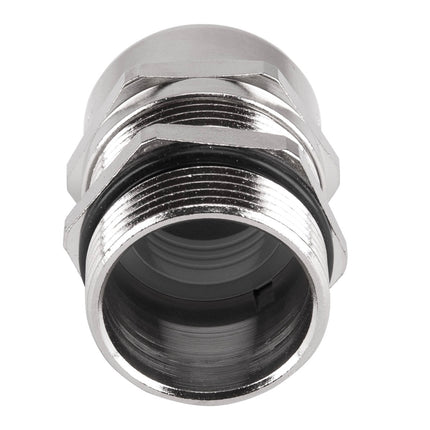

Brass Cable Gland, MS-XL PG29 IP68 SKINTOP 52115760

Product form

Free pickup in our shop(s)

62,90 zł (netto: 51,14 zł)

Medium quantity

    • Shipped today? Order within:
      00day
      09hours
      37minutes
      12seconds
    Description

    Description

    Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring.

    Specification:

    • Nominal thread size: PG29
    • Brand: SKINTOP
    • Manufacturer code: 52115760
    • Min. clamping diameter: 16 mm
    • Max. clamping diameter: 25 mm
    • Wrench size SW: 40 mm
    • Total length: 52 mm
    • Thread length: 15 mm
    • Protection rating: IP68 - 10 bar
    • Material: Nickel-plated brass
    • Sealing through NBR O-Ring
    • Operating temperature: from -25°C to 100°C

    Application range:

    • With a longer connection thread for use in thicker walls
    • In areas with special requirements for mechanical and chemical stability
    • Chemical industry
    • Measurement, control, and regulation
    • Machine and industrial equipment construction
    • Industrial installations construction
