PG cable glands

Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring. Specification: Nominal thread size: PG21 Brand: SKINTOP Manufacturer code: 52115750 Min. clamping diameter: 11 mm Max. clamping diameter: 18 mm Wrench size SW: 30 mm Total length: 45 mm Thread length: 12 mm Protection rating: IP68 - 10 bar Material: Nickel-plated brass Sealing through NBR O-Ring Operating temperature: from -25°C to 100°C Application range: With a longer connection thread for use in thicker walls In areas with special requirements for mechanical and chemical stability Chemical industry Measurement, control, and regulation Machine and industrial equipment construction Industrial installations construction

Read more less

Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring. Specification: Nominal thread size: PG29 Brand: SKINTOP Manufacturer code: 52115760 Min. clamping diameter: 16 mm Max. clamping diameter: 25 mm Wrench size SW: 40 mm Total length: 52 mm Thread length: 15 mm Protection rating: IP68 - 10 bar Material: Nickel-plated brass Sealing through NBR O-Ring Operating temperature: from -25°C to 100°C Application range: With a longer connection thread for use in thicker walls In areas with special requirements for mechanical and chemical stability Chemical industry Measurement, control, and regulation Machine and industrial equipment construction Industrial installations construction

Read more less

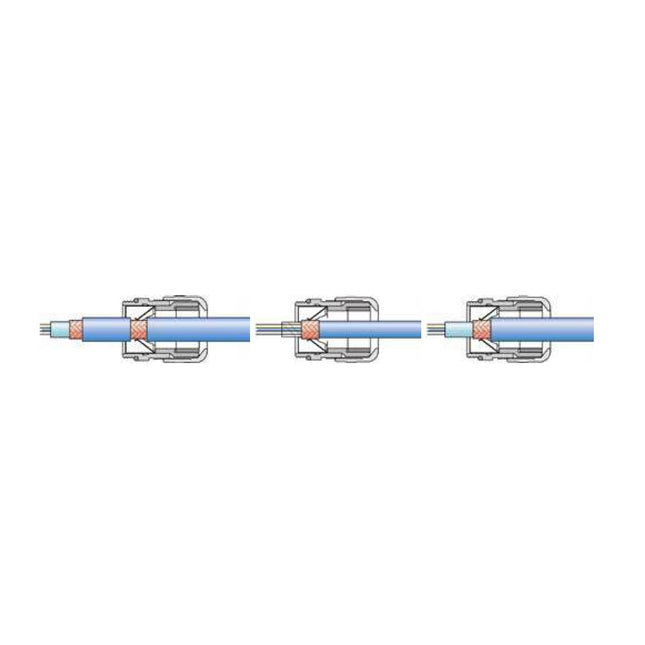

Cable glands secure and seal cables and wires passing through the enclosures of electrical, data communication, or telecommunication devices. They protect against harmful factors such as water and various contaminants. The construction of the glands prevents cables from twisting inside and protects against mechanical damage, such as tearing. The cable gland includes a CR sealing ring and an NBR O-ring. Specification: Nominal thread size: PG9 Brand: SKINTOP Manufacturer code: 53112310 Total length: 39.5 mm Thread length: 12 mm Protection rating: IP68 - 10 bar Material: Nickel-plated brass Sealing through NBR O-Ring Operating temperature: from -25°C to 100°C Application range: For ensuring electromagnetic compatibility when grounding the copper braided shield or copper tape shield Automation technology Telecommunications Measurement, control, and regulation Machine and industrial installations construction

Read more less

The brass locknut for the MS PG42 gland ensures a solid and tight mounting of the gland in a junction box, distribution board, or cabinet. Specifications: Nickel-plated brass Fits glands with PG42 thread size

Read more less

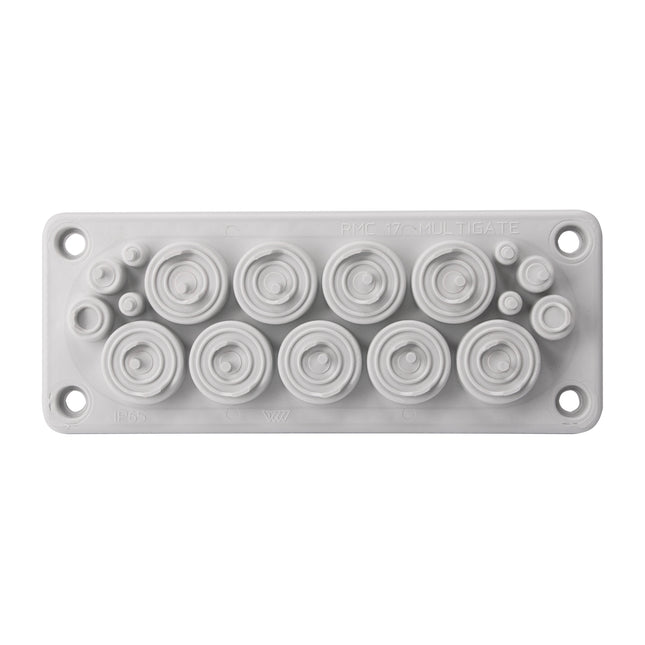

The multi-hole grommet is a component of the installation that ensures safety and functionality. The UL94 V-0 classification indicates that it is made of self-extinguishing materials, providing the highest level of fire safety. The IP65 protection rating guarantees complete protection against dust and water jets, making the product suitable for use in harsh environmental conditions. The multi-hole design allows several cables to pass through simultaneously, greatly facilitating cable organization and management in areas with high cable density. Tear-off plugs ensure proper sealing, reducing the need for additional seals. The plugs can be removed without the need for cutting. The grommet is manufactured in compliance with the RoHS Directive, which aims to limit the amount of hazardous substances entering the environment. Specifications: Operating temperature (°C): -40 to +90 °C Material: TPE, halogen-free Width (mm): 220 Length (mm): 88 Height (mm): 26 Weight (g): 131 Cable diameters (mm): 4 x 5mm - 7mm / 2 x 10mm - 12mm / 2 x 12mm - 15mm / 9 x 10mm - 30mm Protection rating: IP65 Certifications: RoHS Flammability class: UL94 V-0

Read more less
